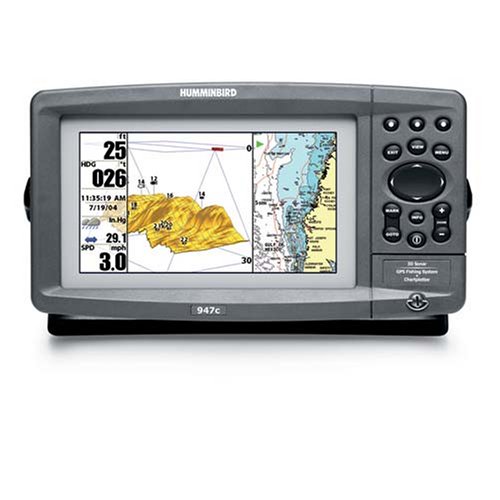

Humminbird 406220-1 947c 3D Sonar and GPS Combo

Humminbird 406220-1 947c 3D Sonar and GPS Combo

Features:
» Enhanced 3D sonar with 11 interlaced beams for higher resolution up to 1,000 feet, and includes 16-channel WAAS GPS receiver with built-in UniMap
» High-contrast, brilliant 256-color TFT, 7-inch LCD screen with 480x854 lines that is sunlight viewable
» Constructed with high-speed, microdynamic transducer for optimum performance that is reliable up to 70 mph
» Runs on 10-20 volts of DC power, providing up to 1,000 watts RMS output and 8,000 watts of peak-to-peak output
» Measures 11.25 x 6.75 x 4.25 inches (WxHxD) as a gimbal mount, or 10.75 x 6 x 1.375 inches (WxHxD) when dash mounted
Editorial Reviews:

Product Description
Dual Function 3d Delivers 53 Continuous Bottom Coverage In 3d Or Traditional 2d. Advanced 3d Shaded With Full 3d View Orientation Control For Virtual Tour Of Bottom. 11 Interlaced Sonar Beams For Better Side To Side Resolution, Up To 20x More History. Triple Channel Sonar Receiver And Dual Microprocessor Design. Compatible With Seamless Navionics Gold And Hotmaps On Mmc/sd/ Built In Map Of Usa Inland Lakes, Rivers And Coastal Areas To 4nm. Communication: Nmea 0183 Output, Depth, Temp, Lat/lon, Cog, Time/date, With Gps Input. 8000w Peak To Peak Power. 455 Khz/83 Khz. Depth Capability: 2d 1000'/3d 240'. - Model: 937c 3d

Amazon.com Product Description
The Humminbird 406220-1 947c 3D Sonar and GPS Combo is an all-in-one fishfinder for the recreational angler that offers incredible ease of use, as well as GPS chartplotting with built-in UniMap, all displayed with crystal clarity on a brilliant, ultra-wide, high-resolution screen. in 3D shaded relief. This little helper has huge built-in capabilities, plus the ability to add powerful, advanced accessories, making it the perfect companion for your fishing outings.

The full-featured 947c 3D Combo has an internal, 16-channel WAAS GPS receiver with omni-directional antenna for higher performance, and a built-in, four-nautical-mile-resolution UniMap of USA inland lakes, rivers and coastal areas that puts you on top of the hot spots. This unit lets you take a virtual underwater tour with shaded bottom contours and full 3D-view orientation control for views from any perspective. This Fishfinder's enhanced 3D sonar uses 11 interlaced sonar beams for higher resolution across 53-degrees of bottom while offering up to 20 times more history detail, and provides 3D capability to 240 feet and traditional 2D capability to 1,000 feet. The dual microprocessors and dual-channel sonar transmitter/receiver in the 947c 3D Combo delivers fast, smooth operation, while real-time sonar instantly captures the action under your boat at up to 40 times per second. And the Sonar Echo Enhancement is so sensitive it reveals the smallest details -- even your jig! All the information you need is displayed on an ultra high-contrast, seven-inch LCD screen with 480x854 lines and in 256-color TFT that is sunlight viewable. This fishfinder has a high-speed, micro-dynamic transducer for optimum performance that is reliable up to 70 mph, and even includes water temperature and GPS speed. The 947c 3D Combo also has full GPS trackplotting capability to show position, mark hotspots and easily find your way home, as well as PC-connection capability to save and manage waypoints and upgrade internal software. The GPS capability has a full-screen trackplotter and a 3D track and split-screen sonar track with an adjustable split. Easy to use, this fishfinder includes advanced upgrades that are plug-and-play compatible, from the WeatherSense barometric pressure, to the SmartCast wireless sonar link and PC connection accessories. It even includes a memory-card expansion slot for Digital Screen Snap Shot or optional cartography.

The 947c 3D Combo features a one-touch zoom with 2x, 4x, 6x and 8x zoom levels, and X-Press Menus so you can access the most important controls with fewer button presses. This fishfinder has both fresh and saltwater set-up options for optimal performance in any environment, and lets you choose between totally automatic or manual operation with upper and lower range control. The 947c 3D Combo includes adjustable chart speed, instant image updating that shows the results of settings changes for the most accurate fine tuning, and a memory feature that retains your settings. This system also features a selectable large, easy-to-read digital readout with an adjustable backlight for night fishing, and Freeze Frame to instantly pause the sonar display, allowing more time to see the details. As an added convenience, this finder is compact in size, with an easy-on, easy-off mounting system that allows it to go almost anywhere. The 947c 3D Combo is built tough with fully gasketed and waterproof construction so it even floats, and is assembled in the USA with a manufacturer's one-year warranty.

The 947c 3D Combo runs on 10-20 volts of DC power, providing 1,000 watts RMS and 8,000 watts of peak-to-peak at 21,000 feet of depth. This unit operates between the 455kHz and 83kHz frequencies across its 11 interlaced beams from six- to 16-degrees at -10db, and has a target separation of 2.5 inches to reveal close-hanging fish. Fully GPS-ready, this unit includes 3,000 waypoints, 50 routes, and 50 tracks with 20,000 points each. The 947c 3D Combo comes as a Transom Mount with a tilt-and-swivel quick-disconnect mount system, for either Gimbal or in-dash mounting, and measures 11.25 x 6.75 x 4.25 inches (WxHxD) as a gimbal mount, or 10.75 x 6 x 1.375 (WxHxD) when in-dash mounted with three inches of behind-dash clearance. For upgrades, this system is compatible with Navionics Gold and HotMaps cartography on MMC or SD card, allowing you access to tidal maps, port service information, and more.
